CI5X Impact Crusher

To satisfy users' requirements for high profits, low costs, and energy saving, and to overcome the shortcomings of conventional crushing equipment such as complex operation procedures and low crushing efficiency, SBM has developed the new generation of high-efficiency coarse and medium-fine crushing machine – CI5X Impact Crusher. This impact crusher is the ideal upgrading product of conventional crushing machines.

Product Features: Integration of latest scientific achievements, heavy-duty rotor with big rotary inertia and high precision, higher crushing efficiency

 Input Size: 0-1300mm
Capacity: 250-2000TPH
Material: Limestone, feldspar, calcite, talc, barite, dolomite, kaolin, gypsum, graphite, etc.

Performance

Integrated Application Of Latest Scientific Research Achievements

Based on the analysis of technical details and operating conditions of a good many domestic and foreign impact crushers, CI5X Impact Crushers integrated many latest scientific research achievements, for example, those concerning crushing chamber, rotor and adjusting device. Thus, the crushing operation and maintenance reach higher level.

Higher Crushing Efficiency – Heavy-duty Rotor with Strong Rotary Inertia and High Precision

CI5X Impact Crusher adopts the heavy-duty rotor with strong rotary inertia and high precision. Meanwhile, it is equipped with high-quality bearings, ensuring the precision and big holding capability of the rotor. So, further, materials can be fully crushed. The crushing ratio is bigger.

Multifunctional Hydraulic Operational System Improving Working Efficiency

CI5X Impact Crusher uses multifunctional hydraulic operational system which boasts high adjustment precision and high velocity. Meanwhile, the replacement and maintenance of hammer and impact blocks and the adjustment of discharging granularity get easier, which further cuts costs on labor and time.

Involute Crushing Chamber Ensuring Shape of Finished Products

The involute crushing chamber of CI5X Impact Crusher is efficient. Materials can be crushed several times inside the chamber. After crushing, finished products have good cubic shape which can better serve as high-quality aggregates.

Digitalized Processing, Higher Precision

There are tens of lines of numerical controlling machine tools. Operations such as steel plates’ cutting, bending, planing, milling and paint spraying are all controlled numerically. The machining precision is high, especially for the core parts.

Sufficient Supply of Spare Parts, Worry-free Operation

SBM, whose businesses cover production and sales, takes responsibility for every machine produced by ourselves. We can offer customers technical services about products and original spare parts to ensure the worry-free operation.



Working Principle

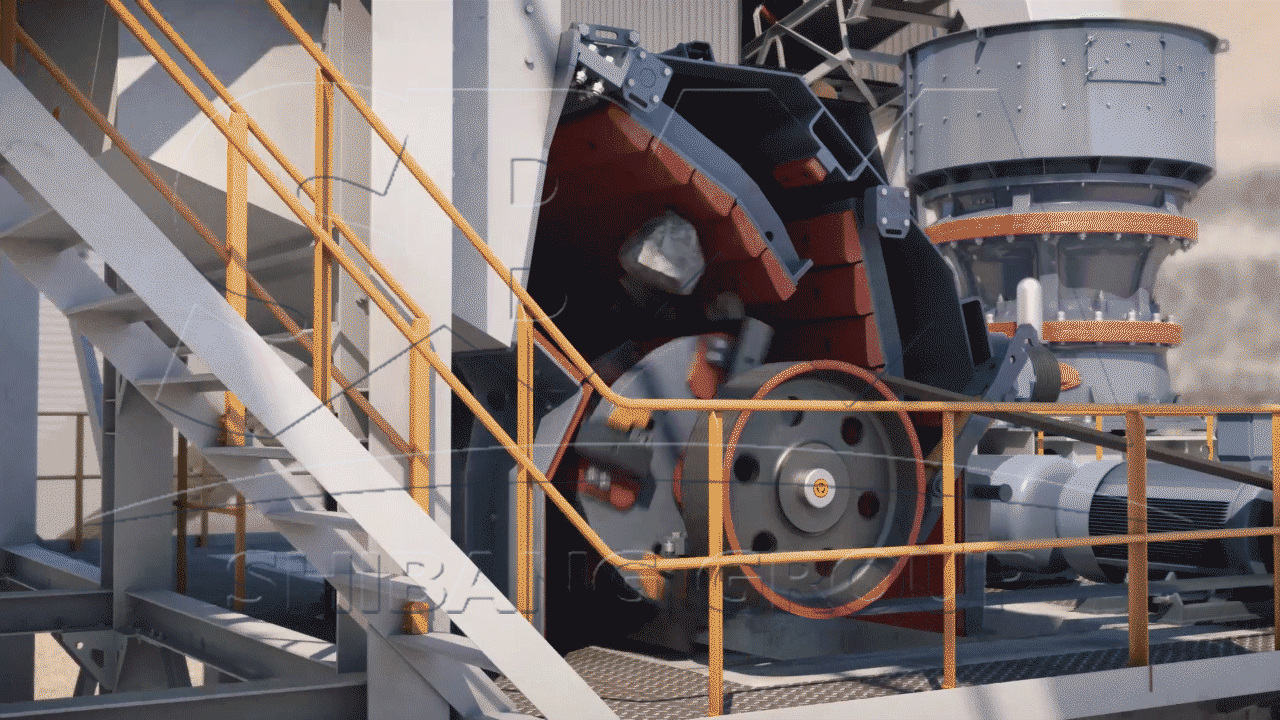

CI5X Impact Crusher breaks materials with impact force. When materials enter the working area of hammer, they may be crushed under the high-speed shock and then thrown onto the impact device above the rotor for another crushing. Next, materials bounce from the lining plate to the working area of hammer again. This process repeats continuously until materials reach qualified granularity and are discharged. Adjusting the gap between the impact rack and the rotor rack can change the granularity and shape of finished products. Behind the impact plate is a spring safety device. When unbreakable materials enter the crushing chamber, the impact rack goes backwards to discharge unbreakable materials out of the crusher.



Product Album

Product Parameters



Note:

1.The bulk specific weight is calculated by 1.6t/m³. When the width of the feeding port is above 600mm, it is a large-scale machine while when the width ranges from 300 to 600mm, it is a medium-sized machine.

2.Product pictures and parameters about models, data, performances and specifications on this website are for reference only. There is a chance that SBM may make changes on above-mentioned information. For specific messages, please refer to the real objects and user manuals. Without special instructions, SBM keeps the right to explain all data involved in this website.
