What Is A Portable Crusher Plant?

Portable crusher plant is a mobile or transportable crushing unit that is designed to be easily moved from one location to another. It is widely used in industries such as stone factories, mines, metallurgy, building materials, highways, railways, water conservancy, chemical engineering, etc. They are mainly used for crushing, screening, shaping, sand making of various stones, as well as for the treatment of construction waste and handling of mobile operations.

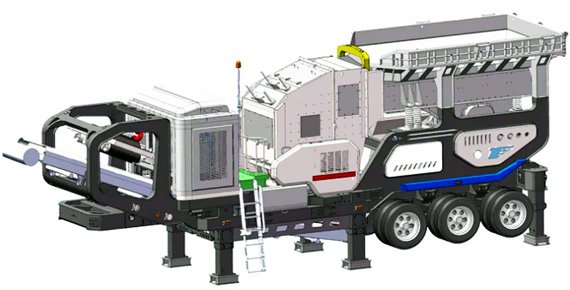

SBM portable crusher plant

A portable crusher plant is a versatile and robust crushing solution with an array of components tailored for efficient material processing. At its core, the primary crusher transforms large rocks or ore into more manageable sizes. Secondary crushers then refine these primary outputs, ensuring optimal granularity.

The system also integrates advanced screening equipment, which classifies the crushed material by size, streamlining further processing and ensuring the production of quality final products.

Depending on specific needs, portable crusher plants can be customized with a range of crushers such as jaw, impact, or cone crushers. Some units even feature an all-in-one design, housing diesel generators and power distribution systems. This self-sufficiency eliminates reliance on external power sources, enhancing their adaptability across diverse operational scenarios.

Why SBM Portable Crusher Plant?

The portable crusher plant launched by SBM are masterpieces that have been developed on the basis of more than 30 years of experience accumulation, installation experience of tens of thousands of machines, and a large amount of capital input on R&D. They can be widely used in many fields such as metal mines, building stones and solid waste disposal to meet customers' diversified requirements.

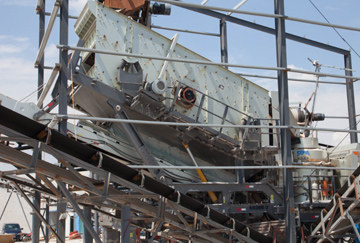

portable crusher plants
portable crusher

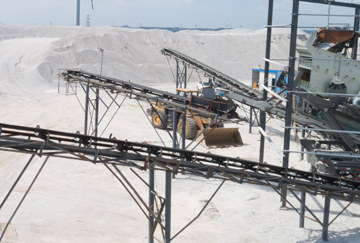

portable crushing plant
More Machine Models, Wider Applications

The portable plants own 7 series and 72 machine models. Compared with the other portable crushers and screens in domestic and foreign markets, portable crushing plants have more machine types and wider coverage.

Concrete-Free Base Installation

The mobile station is equipped with reasonable adjustable fixed legs and hydraulic legs while optimizing the stability of the entire vehicle. Simply compact the installation surface and fix the legs to meet production requirements, achieving no foundation installation.

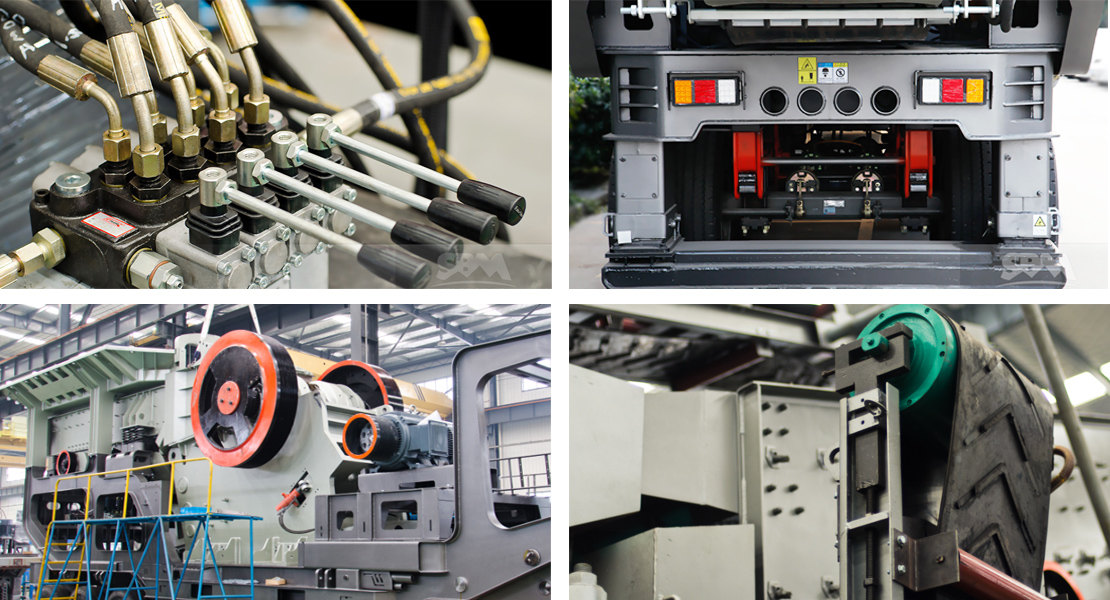

Integrated On-Board Design

All equipment components are fully on-board, complete with a hydraulic adjustment system. There's no need to disassemble parts for transport, making on-site installation convenient. The conveyor belt system is pre-assembled on the vehicle, eliminating the need for cranes and setting up conveyors on-site. This design ensures flexible equipment installation and movement, allowing for swift production and relocation.

Hydraulic Centralized Control Makes Operation & Maintenance Simpler

All actions are controlled by intensified hydraulic system so that the operator can simply and rapidly set the operating actions of the mobile crusher. The operation and maintenance management can greatly save the labor cost.

Reliable and Minimalistic Chassis

With a more streamlined design philosophy, the equipment structure has been simplified. The frame utilizes a straight-beam steel design, enhancing the overall frame strength. This boosts the equipment's reliability and production efficiency.

Quick Entrance to Operation; Flexibility Saving More Money

Compared with fixed production lines, this mobile crushers have a shorter engineering period and rapider transition, which not only reduces the investment risk and opportunity cost of the investors, but also avoids the demolition and construction after the end of project, making it more economical and environmental.

7 Types of Portable Crushing Plants

Portable Coarse Crusher Plant

There are 12 models available for coarse crushing. The capacity can reach 650TPH, and the feeding size can allow 1100 * 1200mm. Meanwhile, multiple series of portable crushing plants can not only appear in quarries and the coal industry, but also meet demands for processing concrete and building wastes. The birth of SBM’s portable crushers for coarse crushing made up for the regret that there is no large-capacity portable crusher plant in domestic area.

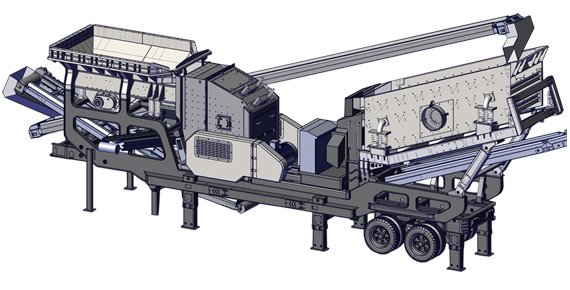

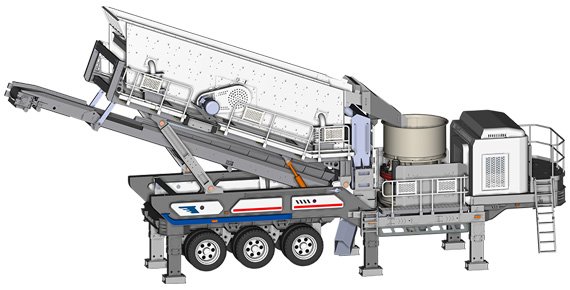

Portable Crushing & Screening Plants

Among portable crusher plants, there are 18 models which, used in the secondary crushing stage, can not only crush materials, but also screen and classify them. Combined with vibrating screens whose angle is adjustable, portable crushing plants are able to have larger capacity.

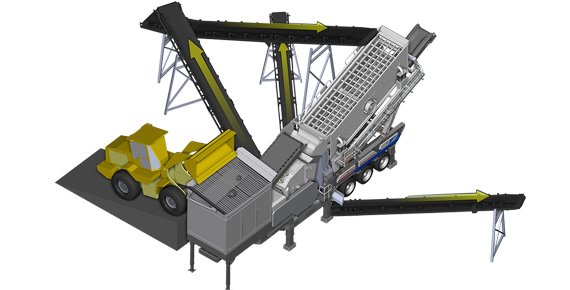

Portable Crusher Work Independently

In actual situations, there may be a large amount of mineral soil which doesn’t need crushing. If users don’t separate it from materials and just feed them into the coarse crushers, the burden on coarse crushers may increase and more energy consumption may be incurred. However, using independent mobile crushers, the mineral soil can be pre-screened with no need to put more equipment or costs.

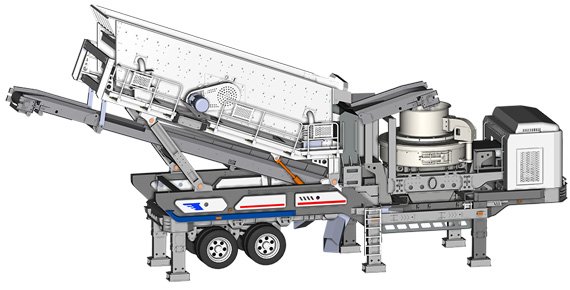

Portable Fine Crushing & Reshaping

Portable crushing plants, there are 4 models supporting fine crushing, reshaping and screening simultaneously. Equipped with advanced VSI Impact Crushers (better known as “sand makers”), the finished aggregates have excellent cubic shape and even granularity, more suitable for concrete production.

Portable Fine Crushing & Sand Washing

This kind of portable crusher is specially designed to produce building sand and road sand. They integrate sand production and sand washing. They can not only wash sand, but also classify sand and remove sundries in sand.

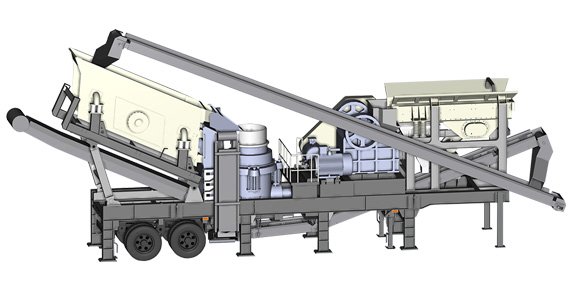

Three-combination of Portable Crusher

For customers whose project scale is not that big, ordinary combination of portable crushers needs high investment costs. So, in light of this, SBM specially pushed out the independent three-combination of portable crusher plant. In this way, demands for the yielding and the flexibility can be satisfied simultaneously.

Four-combination of Portable Crushing Plant

For customers whose project scale is not that big, a four-combination of portable crusher plant is an ideal choice. Integrating coarse crushing and intermediate crushing, the four-combination of mobile crushers can finish working independently. The output aggregates can be used directly, high-efficiency and simple.

How to Upgrade the Structure of Portable Crusher?

Portable crusher plant focus more on its performance. It can be reflected in many aspects like different hosts can be equipped in racks. Equipping adjustable vibrating screen and users can set it depending on the situation. Hydraulic control make operate and maintenance easier.

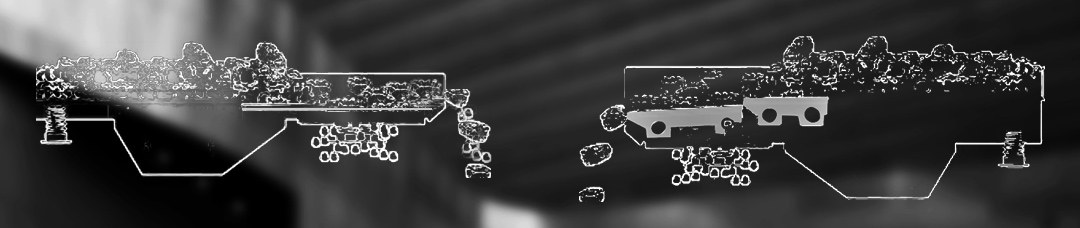

1. Big Capacity with More Thorough Prescreening

Older feeder equips only one grate bar but new-style feeder does double-deck which gives a more thorough prescreening.

Special feeder makes high efficiency to increase the processing capacity by its credible structure of bar screen and optimized details like gap width.

new-style feeder

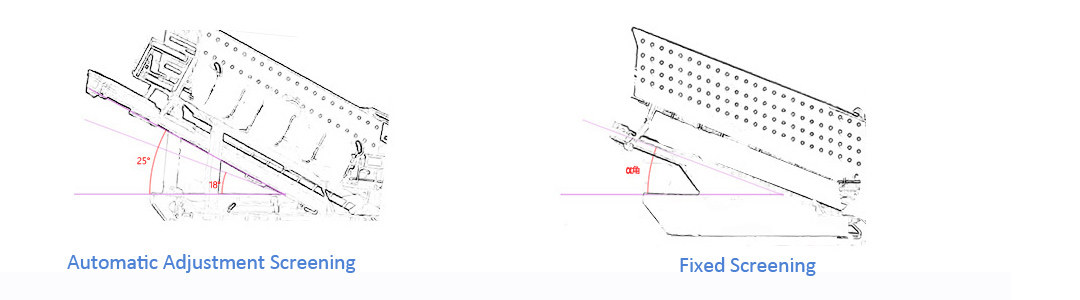

2. Automatic Adjustment Screening Fits Different Needs

Under the same installed power, the efficiency of this screening is more obvious than fixed one without changing screen and it can be flexibly adjusted in 18-25°.

Automatic Adjustment Screening Fits

By adding angle adjustment function on portable crusher plant, user can set the vibrating screen angle without changing screen according to situation. Bigger screen angle can make higher efficiency to get bigger capacity under the same power.

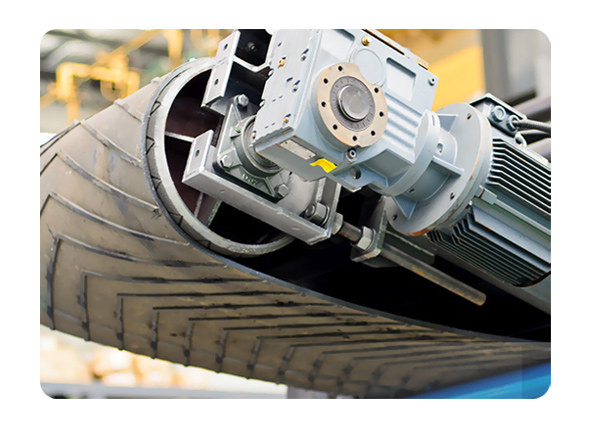

3. Automatic Adjustment Screening Fits Different Needs

Generally , belt conveyor with cycloid hydraulic drive can save energy, avoid inversion and machine wear by adjusting speed automatically.

The driver on older belt conveyor is usually arc-shaped gear motor with considerable deficiencies in adjusting speed and no-load condition. In addition, it can’t stop machine from inverting when there need emergency shut down, which probably damage machine.

The portable crusher adopts cycloid hydraulic drive and can adjust its speed freely which help saving energy and costs. When encountering downtime, cycloid hydraulic drive can stop machine from inverting and damaging but still with material distribution naturally.

Automatic Adjustment Screening

4. High-grate Motor with Stronger Performance

Branded motors are used in this portable crusher plant like ABB and Siemens with reliable quality and the machine has good adaptability like high temperature or high altitude.

Besides, it applies a series dustproof measures to reduce pollution emission (dust and noisy) and the impact on environment.

portable crusher machine

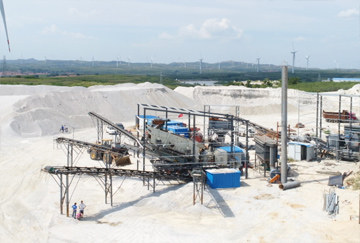

Customer Sites

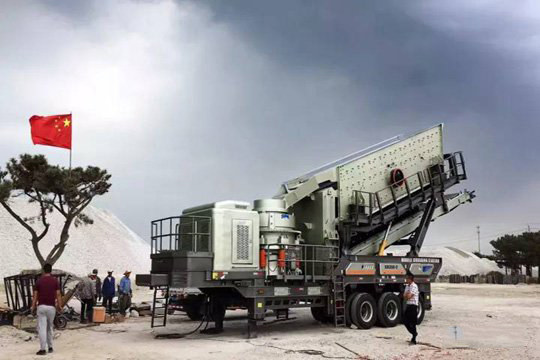

Portable Crushing Plant in Shandong

Material: Granite Capacity: 180-220T/H

This portable crusher production line is reasonable and simple, greatly reducing the number of belt conveyors and silo hoppers, shortening the equipment installation cycle (installation and commissioning of the entire line only takes about 10 days), reducing the late failure rate of the production line and reducing the energy consumption of the entire line and production costs.

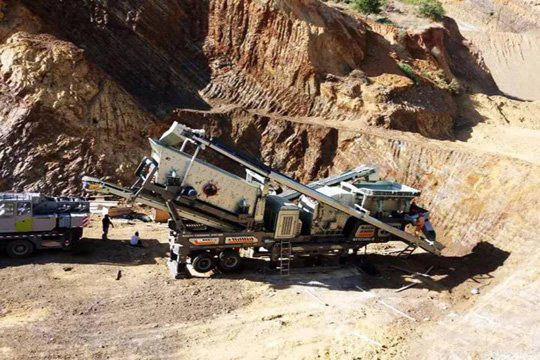

Portable Plants in Zhejiang

Material: Limestone Capacity: 90—100T/H

Customer Feedback: Our raw material is rock, the production site is located in the mountainous area, and the construction period is short. After completing an operation, we need to quickly transfer to another site for crushing production. The ordinary equipment is difficult to meet our needs. So, SBM offered us a portable crusher that can quickly enter the site. The installation is simple. The maintenance is easy. Especially, aggregates produced have good grain shape and high quality, and the use effect is very satisfactory.

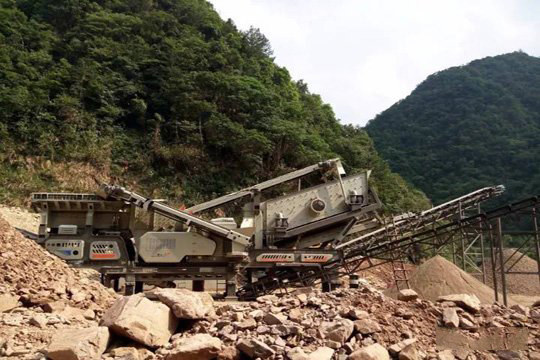

Portable Crusher Plant in Yunnan

Material: Limestone Capacity: 100—120T/H Application: Finished aggregates are supplied to expressway projects and local mixing plants

Based on local production conditions and requirements of finished products, the customer made a number of inspections and repeated comparisons, and finally decided to introduce the mobile crusher from SBM. After the production line was put into use, the operation status was good, the production cost was low, and the output efficiency was high, becoming a local demonstration production line.

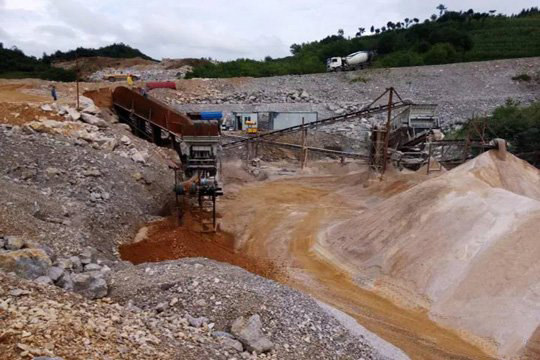

Portable Crushing Plants in Guizhou

Material: Limestone Capacity: 180—250T/H

The design of this production line is reasonable. Since operation, the production line has been having high and stable yielding. It attracts many peers around to inspect and visit.

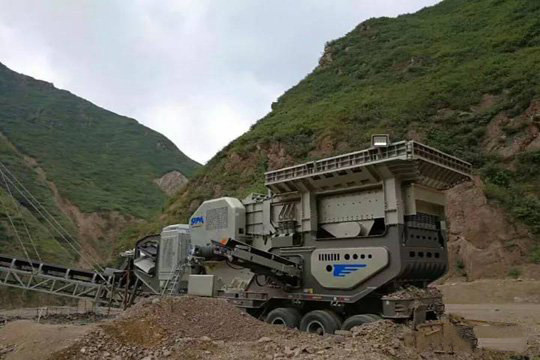

Portable Crusher in Gansu

Material: Granite Capacity: 400—500T/H Application: Finished aggregates are supplied to local expressway projects and the customer’s mixing plant

Before this cooperation, the customer had established a large-scale granite crushing line provided by SBM. In response to environmental protection and in order to cut the transfer cost of raw materials, the customer finally chose a mobile crusher developed and researched by SBM.

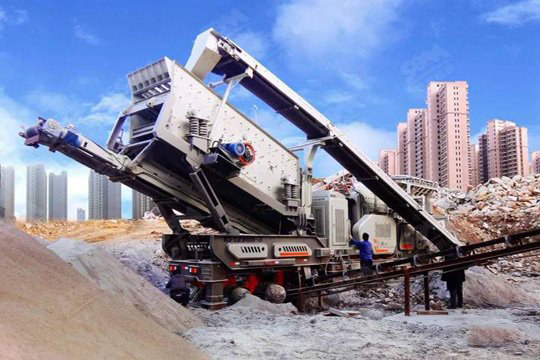

Portable Crushing Plants in Fujian

Material: Building wastes Capacity: 200T/H Application: Finished aggregates areused in highway cushions, mixing stations and brick-making enterprises.

The customer is from a resource recycle company. To bridge the demand gap of local aggregate market, the customer decided to invest a production line for disposal of building wastes. Very often, the building wastes are scattered and space of demolition is limited, so how to dispose building wastes with low costs but high efficiency is the question customer cares most. After many inspections, the customer finally chose to cooperate with SBM by purchasing a mobile crusher.

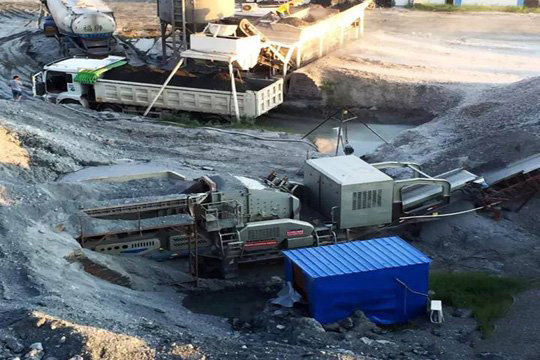

Portable Crusher in Changsha

Material: Building wastes Capacity: 130 - 200T/H

After multiple investigations, the customer chose SBM's mobile crushing station for the treatment of solid building wastes. The production line was designed to produce gravels and stone powder with capacity 130-200TPH. Currently, the operation runs stably and the production line becomes the model of solid building waste treatment in local areas.

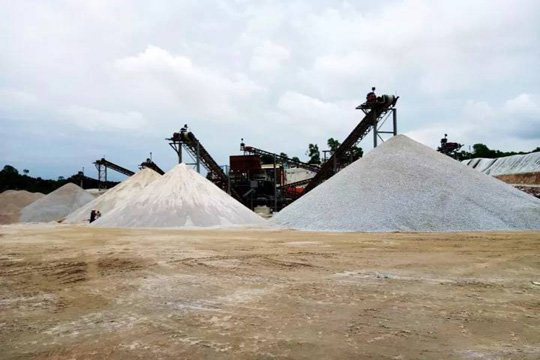

Portable crusher in Shenzhen

Material: Granite Capacity: 400-500T/H Application: Finished aggregates are supplied to local expressway projects and the customer’s mixing plant

Before this cooperation, the customer had established a large-scale granite crushing line provided by SBM. In response to environmental protection and in order to cut the transfer cost of raw materials, the customer finally chose a portable crusher plant developed and researched by SBM.
