Flotation Machine

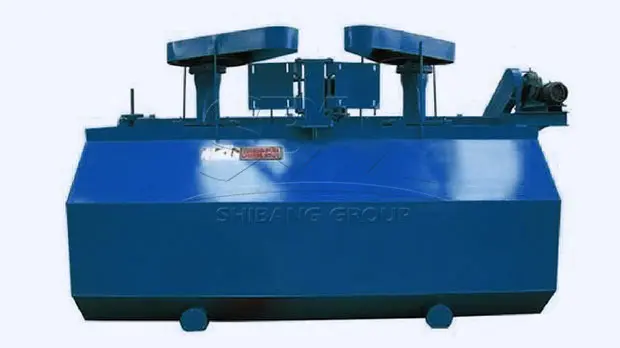

Enclosed two-section impeller design creates strong downward circulation in pulp.

High suction intensity with low energy consumption.

Each slot combines suction, pulp absorption, and flotation functions, forming a self-contained flotation loop without requiring additional equipment.

Horizontal slot configuration allows for easier modifications.

Efficient pulp circulation minimizes coarse sand sedimentation.

Equipped with self-control and electric control devices for easy regulation.

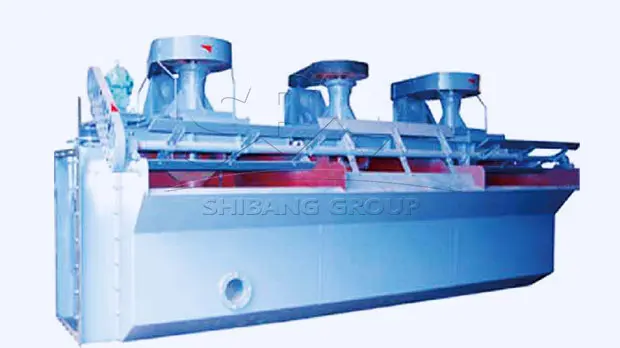

big suction intensity and low energy consumption.

it doesn’t need foam pump for its vertical layout.

the peripheral speed of the impeller is low.

the cover plate is durable.

the pulp is capable of the conducting downward and upward circulation in the fixed way that will be good for the suspension of the coarse mineral.

The united flotation machined can be formed after combining with JJF-type flotation machine which acts as the suction slot for every single operation.

It has a smaller diameter of impeller and lower power consumption which saves 30%-50% of power.

An air distributor is equipped with in the tank, so air is evenly dispersed.

The impeller works as a centrifugal pump to make the solid particles suspending.

The tank is made as U type, reducing sand settlement to the least.

Due to reasonable design of the impeller structure and the impeller space, impeller wearing is even, reagents consumption and operation costs are low.

They both can start work with load. They are in a simple structure with easy maintenance.

It is convenient to adjust slurry level with auto electro-controlling devices.

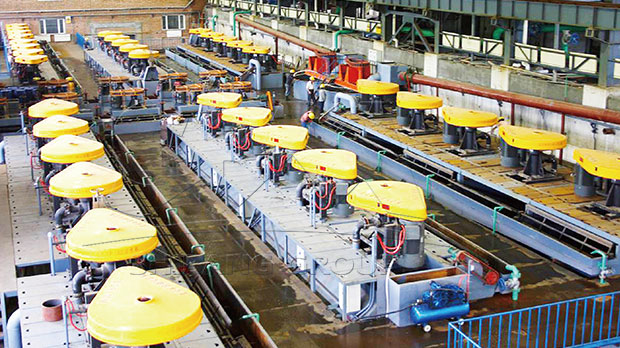

KYF series cannot suck slurry spontaneously, so its power consumption is low while XCF series can suck slurry spontaneously, so its power consumption is higher.

KYF series and XCF series are generally used cell units. XCF works as sucking flow tank and KYF as the direct flow tank. The cell units can be allocated horizontally without foam pump.
