CS Spring Cone Crusher

CS Spring Cone Crusher, researched and developed by SBM---a cone crusher manufacturer in China, takes the lamination crushing principle and the concept of crushing more and grinding less. Meanwhile, CS Cone Crusher integrates high swing frequency, optimized cavity type and rational stroke. Excellent performance makes it popular among customers.

Product Features: Inheritance of classic designs and innovation of technological researches release excellent performances like stability and high efficiency.

Input Size: 0-178mm
Capacity: 45-1400TPH
Material: Granite, diabase, basalt, pebble, limestone, dolomite, metallic ores and non-metallic ores, etc.

Performance

Reliable Performance - Classical Structural Design

The reason why SBM’s CS Spring Cone Crusher is so popular at home and abroad is its reliability under various working conditions. CS Cone Crusher reserves classical structures, which guarantees the reliability of CS Cone Crusher to the greatest extent.

Multiple Cavity Types Suitable for Different Working Conditions

CS Spring Cone Crusher has two types, i.e. standard type and short-head type; each type of CS cone crusher is equipped with multiple cavities, so that all CS cone crushers are suitable for the intermediate crushing and fine crushing of materials of various rigidities. A large number of practical applications show that CS Spring Cone Crusher realizes excellent performance when being used in intermediate crushing operations.

The Principle of Lamination Crushing Brings Better Discharging Size

CS Spring Cone Crusher adopts the principle of lamination crushing. Not only can the crushing efficiency improve, but also the abrasion of vulnerable parts reduces greatly. The finished products are cubic. Meanwhile, the content of qualified fine particles is high enough. Finished products can better serve as high-quality aggregates.

Hydraulic Lubrication System Makes Operations Easier

CS Cone Crusher is equipped with the hydraulic lubrication system, through which users can easily complete the adjustment of discharge opening and the cavity cleaning, thus simplifying the daily operations of cone crusher. In addition, this system adopts electric cooling lubricating oil station, which can realize the automatic control of lubrication station and guarantee the lubrication and cooling during operation of CS Cone Crushers.

Digitalized Processing, Higher Precision

There are tens of lines of numerical controlling machine tools. Operations such as steel plates’ cutting, bending, planing, milling and paint spraying are all controlled numerically. The machining precision is high, especially for the core parts.

Sufficient Supply of Spare Parts, Worry-free Operation

SBM, whose businesses cover production and sales, takes responsibility for every machine produced by ourselves. We can offer customers technical services about products and original spare parts to ensure the worry-free operation.



Working Principle

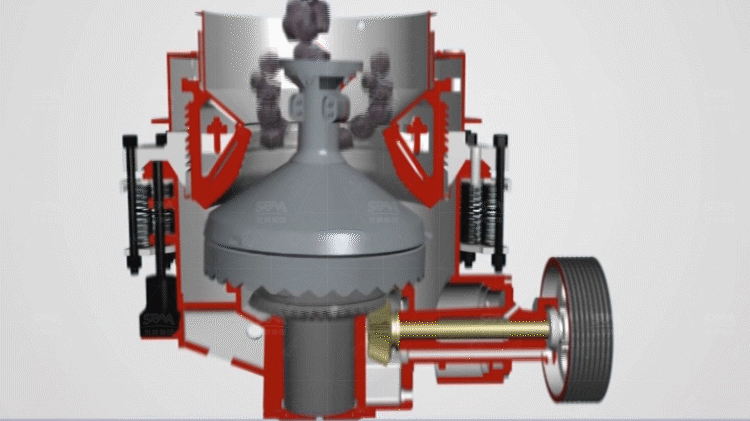

When the CS Spring Cone Crusher works, driven by the motor, the eccentric sleeve rotates under the combined action of the triangular belt, big belt pulley, transmission shaft, bevel pinion and bevel gear wheel. Then, under the action of the eccentric sleeve, axis starts to rotate, too. During which, the crushing wall would be sometimes close to or sometimes away from the rolling wall. This motion forces materials to be shocked, squeezed and broken continuously in the crushing cavity between the crushing wall and the rolling wall. Finally, materials are discharged out of the machine when their fineness reaches the discharging standard.



Product Album

Product Parameters



Note:

1.The bulk specific weight is calculated by 1.6t/m³. When the width of the feeding port is above 600mm, it is a large-scale machine while when the width ranges from 300 to 600mm, it is a medium-sized machine.

2.Product pictures and parameters about models, data, performances and specifications on this website are for reference only. There is a chance that SBM may make changes on above-mentioned information. For specific messages, please refer to the real objects and user manuals. Without special instructions, SBM keeps the right to explain all data involved in this website.
